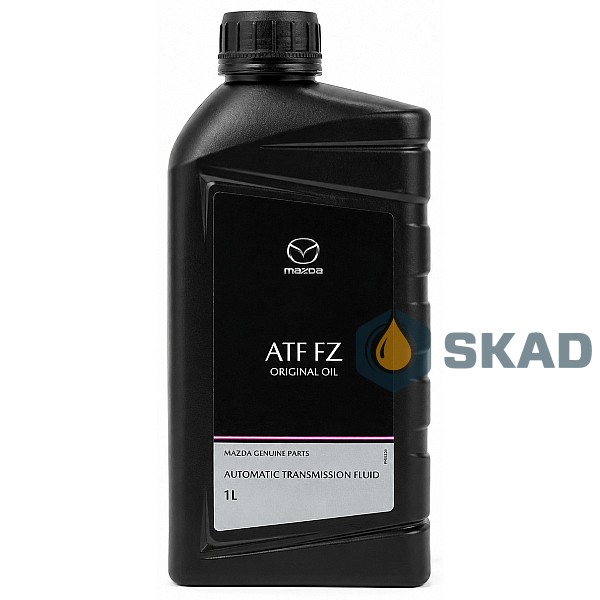

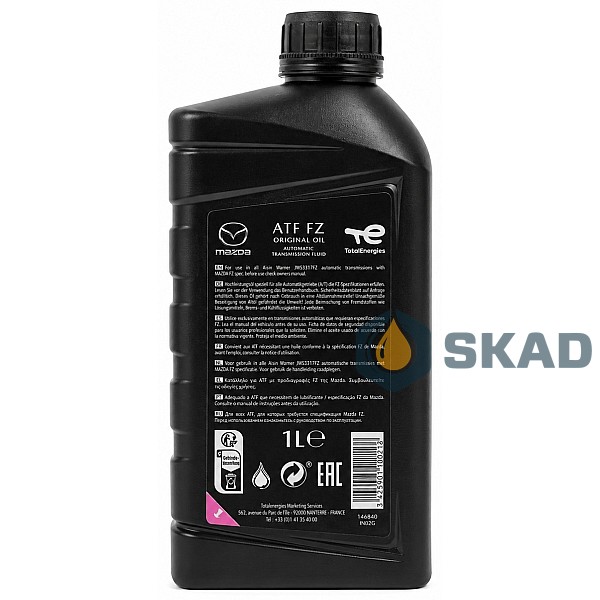

Mazda ATF FZ — Original oil for Skyactiv automatic transmissions
Original low-viscosity transmission fluid Mazda ATF FZ is developed specifically for use in proprietary Skyactiv-Drive automatic transmissions (FW6A-EL, FW6AX-EL). The product ensures flawless operation of friction units and protects the hydraulic control unit in the most demanding operating conditions.
Key features
Wear protection
A high-tech additive package effectively prevents wear, scuffing, and chipping on transmission gears and bearings.
Driving comfort
Optimal frictional properties of the fluid eliminate jerks and vibrations, ensuring smooth and almost imperceptible gear shifting.
Synthetic base
Created based on premium synthetic oils, which guarantees a long service life of the fluid without losing protective properties.
Main characteristics
| Approval | Mazda ATF FZ (Skyactiv) |
| Fluid color | Blue |
| Density at 15°C | 0.835 g/cm³ |
| Viscosity at 40°C | 23.2 cSt |
| Viscosity at 100°C | 5.6 cSt |
| Flash point | 214 °C |
Note: The fluid has a characteristic blue color. It is not recommended to mix it with ATF of other specifications. Regular replacement of ATF FZ (every 50,000–60,000 km) significantly extends the life of the expensive Skyactiv automatic transmission.
Need help calculating the volume for a change? Our specialists will advise you on the exact number of liters and the availability of original consumables for your Mazda — write or call us!
